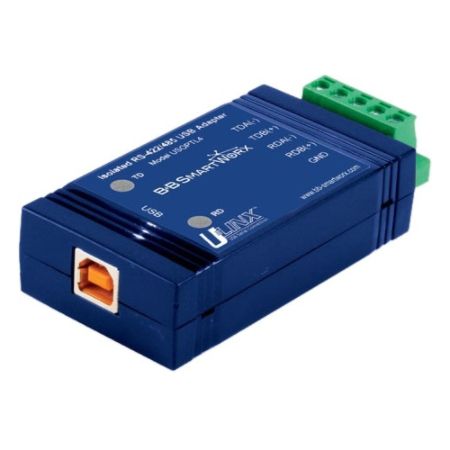

USB to Isolated 422/485 w/Plug Terminal Block and LEDs - B+B SmartWorx Item # 346896

 |
USB to Isolated 422/485 w/Plug Terminal Block and LEDs - B+B SmartWorx
$ 119 .99 / each $119.99
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    These compact, isolated USB to RS-232 and USB to RS-422, and RS-485 converters allow you to add an asynchronous serial port to your USB only PC. The built in 2 kV isolation protects your port from dangerous ground loops. They are perfect for connecting to remote devices or programming ports in field service applications. They are USB 2.0 compatible. Model USO9ML2 is the RS-232 version and supports hand shake signals as well as data at speeds up to 460.8 Kbps. Model USOPTL4 is the RS-422 and RS-485 version and supports data rates up to 460.8 Kbps. RS-485 2-Wire and 4-Wire modes are selected using a DIP Switch. If you don't need isolation, use model USPTL4. Windows operating systems up to Windows 7 (32 and 64 bit) are supported. The USOPTL4 is equipped with our signature high retention USB port. The RS-422/485 versions have a removable terminal block. Need a strain relief for your RS-422 or RS-485 cable? Check out the accessories tab for our TB5P508SR-2PK.

    Back To Top

    Product Details

    Item # 346896
    Manufacturer # RV7025
    adapter type Serial/USB
    weight 6.72 oz
    brand name B+B
    Connector on Second End 1 x Type B Female USB 2.0 USB
    height 6in.
    Features Surge Protection; LED Indicator
    Certifications & Standards CE; EN 55022; EN 61000-6-1; EN 61000 (-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11); CC Class; CISPR Class B (EN55022); FCC Class B
    width 5.5in.
    package contents USB To Isolated 422/485 W/Plug Term Block And Leds; 1 meter USB cable; Driver CD
    Product Name USB To Isolated 422/485 W/Plug Term Block And Leds
    Connector on First End Terminal Block RS-422/485 Serial
    manufacturer B+B SmartWorx
    warranty length limited lifetime
